QZDB-D Forklift Boom Specifications

Introduction

In today’s fast-paced industrial environment, efficient and reliable material handling is essential. One of the pivotal tools that enhance productivity on the factory floor, in warehouses, and at construction sites is the forklift boom. Designed to extend the lifting capabilities of standard forklifts, a forklift boom not only improves reach but also increases the flexibility and versatility of lifting operations. Among the various options available in the market, the QZDB-D forklift boom stands out due to its robust design, heavy-duty construction, and specialized engineering tailored for forklifts with capacities ranging from 7T to 15T.

This comprehensive guide explores the QZDB-D forklift boom in detail. We will cover everything from its design and technical specifications to the various application scenarios where this product can significantly enhance operational efficiency. Whether you are an operations manager looking for a reliable attachment to improve your lifting capabilities, or an engineer seeking detailed insights into product performance and safety, this guide provides an in-depth analysis to help you make an informed decision.

Product Overview

What Is a Forklift Boom?

A forklift boom is an attachment designed to extend the operational reach of a forklift. Unlike standard forklifts that have a fixed fork length, a forklift boom provides an additional lifting mechanism, allowing operators to handle heavy and bulky loads with greater precision. This extension not only increases the reach but also improves the efficiency of loading, unloading, and stacking operations across various industrial settings.

Introducing the QZDB-D Forklift Boom

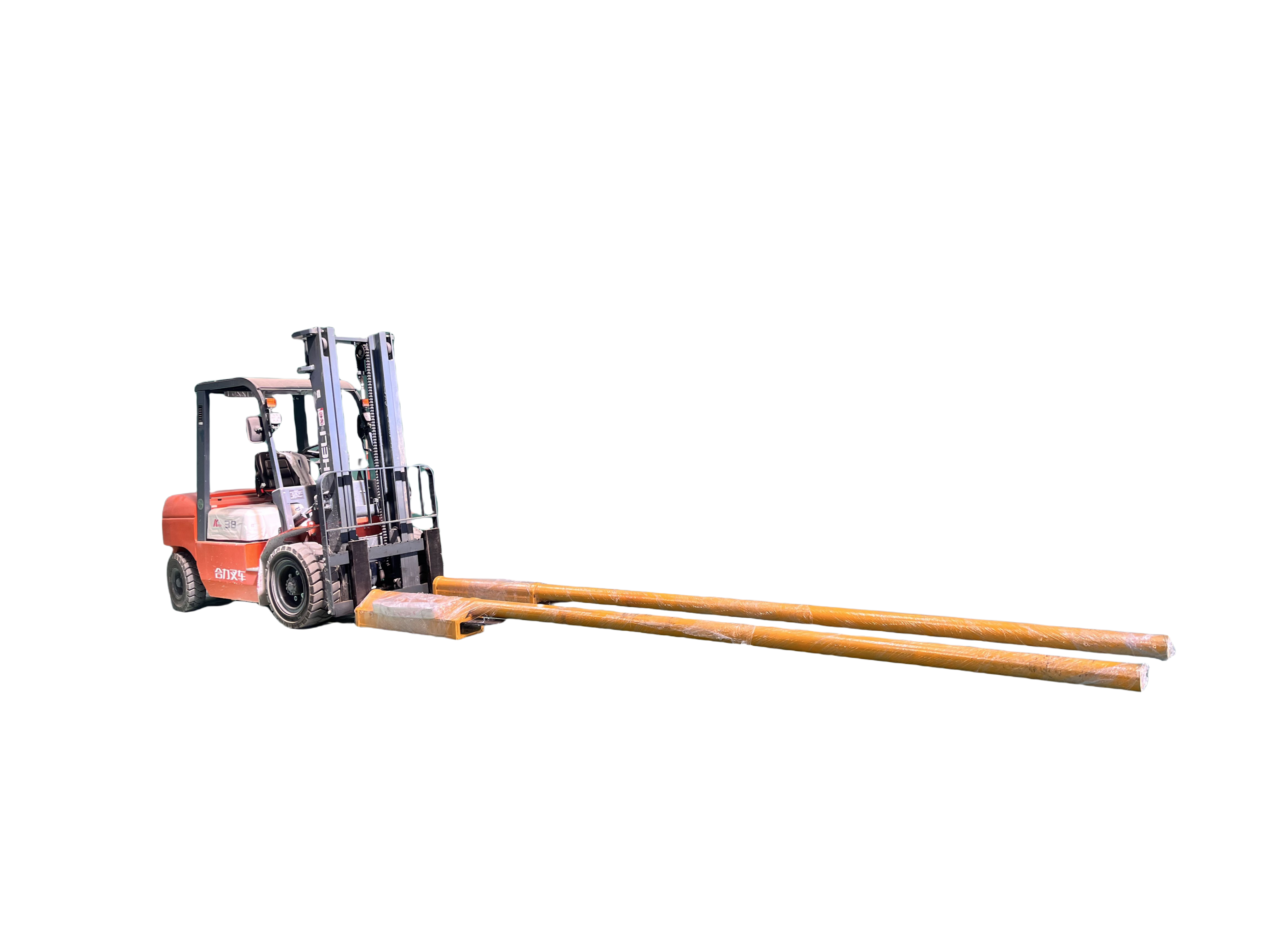

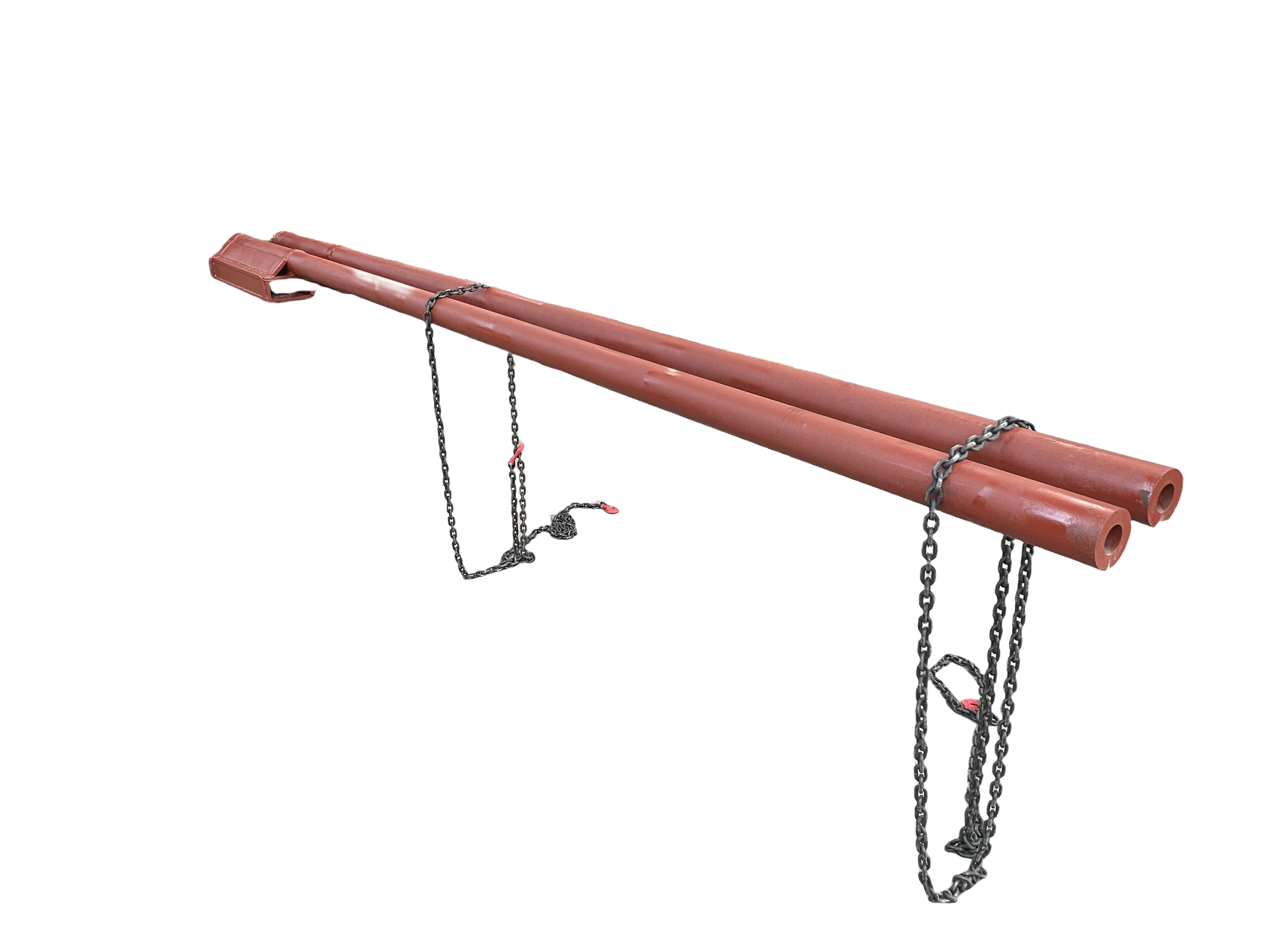

The QZDB-D forklift boom is a heavy-duty, seamless pipe, detachable crane boom engineered specifically for forklifts. With its split design, this product is optimized for ease of installation, maintenance, and transport. Its innovative design leverages high-quality materials and precision engineering to ensure maximum durability and performance even under demanding operational conditions.

Key features include:

• Heavy-Duty Seamless Pipe Construction for high strength and resistance to deformation under heavy loads.
• Detachable Design for easy assembly, maintenance, and transport.
• Optimized for Forklifts with Capacities between 7T and 15T.
• High Load Capacity of up to 5T for reliable heavy lifting.
• Precision Engineering including a main tube thickness of 28mm and precise forklift hole dimensions (210 x 105 mm).

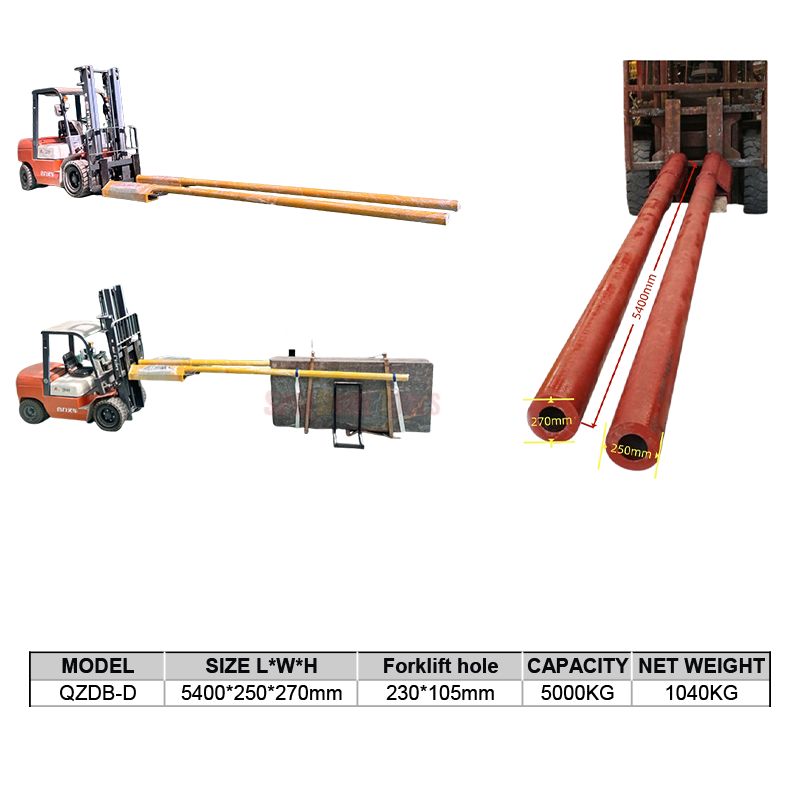

Detailed Product Specifications

Structural and Material Specifications:

• Main Construction: Heavy-duty seamless pipe
• Pipe Thickness: 28mm, ensuring robust strength and longevity
• Pipe Quantity: 2 pieces, designed for balanced structural support

Dimensions and Compatibility:

• Forklift Hole Dimensions: 210 mm x 105 mm
• Compatible Forklift Capacity Range: 7T to 15T
• Packaging Dimensions: 5400 mm x 500 mm x 265 mm

Performance Metrics:

• Load Capacity: Up to 5T
• Net Weight: 980KG

Key Features and Benefits

Durability and Robust Construction

Crafted from high-quality seamless pipes, the QZDB-D forklift boom offers superior durability and resilience. Its heavy-duty construction ensures it can withstand repeated heavy lifting operations without succumbing to wear and tear, making it ideal for continuous industrial use.

Detachable and Modular Design

The detachable design allows for quick assembly, disassembly, and maintenance. This modular approach minimizes downtime and simplifies transportation, making the QZDB-D a practical choice for dynamic industrial environments.

Compatibility and Versatility

Designed to integrate seamlessly with forklifts ranging from 7T to 15T, the QZDB-D forklift boom is versatile enough to be used across various industries, including warehousing, construction, manufacturing, and logistics.

Safety and Reliability

Engineered to meet strict safety standards, the boom provides reliable performance with even load distribution and a maximum load capacity of 5T. This ensures that operators can work safely and efficiently, reducing the risk of accidents.

Efficiency and Operational Performance

By extending the reach of forklifts, the QZDB-D significantly enhances operational efficiency. It facilitates easy access to high and hard-to-reach areas, streamlining processes such as loading, unloading, and stacking, ultimately leading to improved productivity.

Application Scenarios

Industrial Warehousing and Distribution

In warehouses and distribution centers, space is at a premium. The QZDB-D forklift boom extends forklift reach, enabling operators to access high storage racks and retrieve goods from deep within storage areas, thereby streamlining inventory management and speeding up order fulfillment.

Construction and Heavy-Duty Material Handling

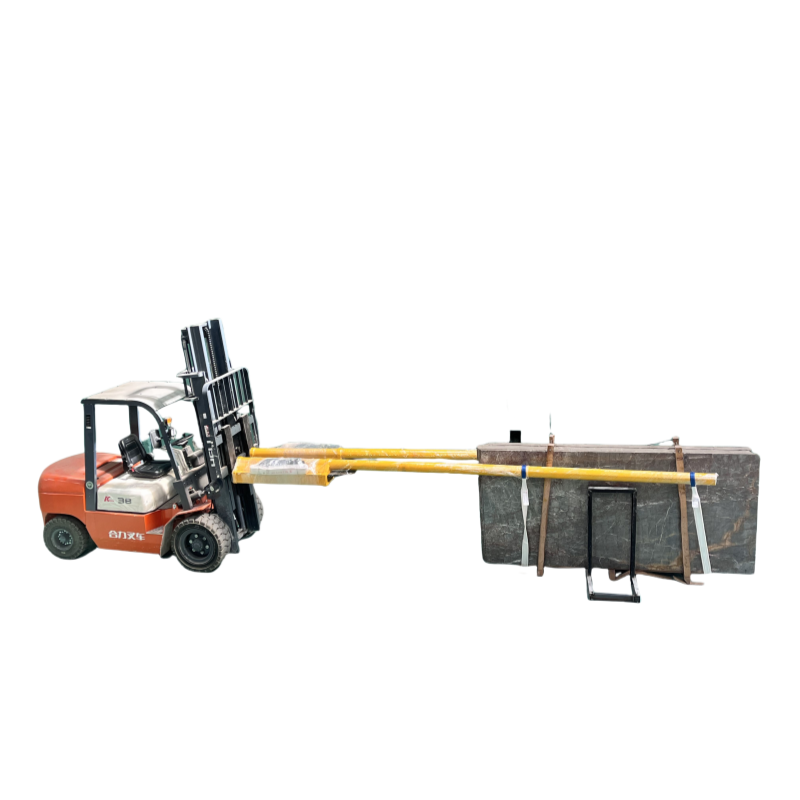

On construction sites, the boom is ideal for moving heavy and bulky materials such as steel beams, concrete blocks, and prefabricated components. Its robust design ensures the safe handling of oversized loads, contributing to both operational safety and efficiency.

Manufacturing Plants and Production Facilities

In manufacturing environments, the QZDB-D forklift boom streamlines the transport of heavy components between production lines. Its compatibility with various forklift capacities facilitates continuous, efficient production processes.

Logistics and Transportation Hubs

At logistics centers, rapid and safe movement of goods is critical. The boom’s high load capacity and robust construction make it ideal for loading and unloading cargo, ensuring that supply chain operations run smoothly.

Specialized Industrial Applications

For industries such as mining or energy, the customizable design of the QZDB-D forklift boom allows it to be tailored to unique material handling requirements, ensuring reliable performance even in harsh conditions.

Installation and Maintenance

Installation Process

Proper installation is essential for optimal performance. The detachable design simplifies the installation process, allowing for quick and secure attachment. Typical steps include:

• Preparation: Power down the forklift, ensure stability, and inspect components for damage.
• Alignment: Align the boom with the mounting points, ensuring the forklift hole dimensions (210 mm x 105 mm) match.
• Securing the Boom: Use the provided fasteners to secure the boom and verify that all connectors are tight.
• Functional Testing: Test under no-load and low-load conditions before full operation.

Maintenance Guidelines

Regular maintenance ensures longevity and reliable performance. Recommended practices include routine inspections for wear or corrosion, proper lubrication of moving parts, keeping the boom clean, and following the manufacturer’s service schedule.

Operational Safety Considerations

Adhering to Weight Limits

It is crucial to adhere to the maximum load capacity of 5T. Exceeding this limit can compromise the structural integrity and safety of the boom. Always ensure even load distribution.

Operator Training and Safety Protocols

Proper operator training is essential. Operators should be well-versed in the correct usage, attachment, operation, and detachment of the forklift boom while always using appropriate safety gear.

Regular Inspections and Documentation

Maintain detailed logs of all inspections, maintenance, and repairs to ensure ongoing safety and regulatory compliance.

Comparative Analysis: QZDB-D vs. Other Forklift Booms

Superior Material Quality

The QZDB-D stands out due to its heavy-duty seamless pipe construction, offering superior durability and resistance compared to alternatives that may use lower-grade materials.

Innovative Detachable Design

Its detachable design ensures ease of installation and maintenance, reducing downtime and providing flexibility in dynamic industrial settings.

Performance and Safety

With a load capacity of up to 5T, the QZDB-D ensures reliable performance with even weight distribution, enhancing both efficiency and safety.

Cost Efficiency and Return on Investment

Investing in the QZDB-D forklift boom can lead to significant long-term cost savings by reducing downtime and maintenance expenses, while also increasing overall productivity.

Future Trends in Forklift Boom Technology

Advanced Materials and Engineering

Future trends indicate the adoption of advanced materials and engineering practices that could further improve strength-to-weight ratios, resulting in lighter yet robust designs.

Integration with Automation and Smart Technologies

The integration of digital monitoring systems and automation will likely enhance safety and operational efficiency, with real-time data optimizing maintenance and performance.

Customization and Modularity

Future forklift booms may offer customizable and modular designs that can be adapted to specific industry needs, providing scalable solutions that evolve with operational demands.

Customer Testimonials and Case Studies

Feedback from users of the QZDB-D forklift boom highlights improved efficiency, enhanced safety, and long-term cost savings. Operators have reported that the extended reach significantly reduces loading times and increases overall productivity, underscoring the reliability and performance of the QZDB-D in various industrial environments.

Conclusion

The QZDB-D forklift boom is a testament to engineering excellence in industrial material handling. Its robust construction, innovative detachable design, and high load capacity make it an indispensable tool in environments ranging from warehousing and construction to manufacturing and logistics.

Key advantages include:

• Superior durability with high-quality seamless pipe construction and a 28mm tube thickness.
• Enhanced versatility and compatibility with forklifts rated between 7T and 15T.
• Optimal safety and efficiency through even load distribution and a maximum load capacity of 5T.
• Ease of installation and maintenance due to its detachable, modular design.

Investing in the QZDB-D forklift boom not only enhances operational efficiency but also ensures long-term safety and reliability in material handling operations.

Final Thoughts

The QZDB-D forklift boom is more than just an attachment—it is an investment in safety, efficiency, and innovation. Whether your operations are in warehousing, construction, manufacturing, or logistics, this heavy-duty boom is designed to meet your needs and exceed expectations.

Embracing advanced technology like the QZDB-D positions your business for future growth and operational excellence.
